Top 10 Moving Coil Step-up Transformer Guide For Better Vinyl Gain And Impedance Matching

⚡ Quick Verdict

📋 How We Evaluated

Evaluation focused on build quality, using housing design and connector layout for durability and shielding. Performance criteria included step-up ratio behavior, stated bandwidth, distortion claims, and impedance matching. Value and user suitability used price-noted features, compatibility signals like impedance and cartridge voltage range, and Amazon rating guidance where available, which is limited here.

Transformer Type	Moving coil to moving magnet step-up (passive)
Connections	RCA I/O
Adjustment	Preference switch for impedance level
Primary Benefit	Raises MC signal level for MM phono stage use

What We Found

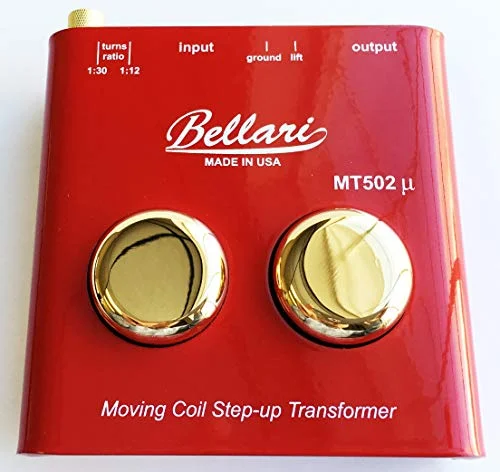

The Rolls MT502 Bellari Step-Up Transformer is built around one job: getting a moving coil signal up to a moving magnet (MM) phono stage using stereo RCA in and RCA out, without needing power.

What stands out is the impedance preference switch, which is meant to help you dial in cartridge loading rather than treating everything as one fixed match. That matters with MC cartridges, because changing the load can shift the cartridge’s tonal balance.

Overall, the MT502’s concept is a straightforward passive transformer setup with user-adjustable impedance behavior aimed at improving how usable your MC level is into an MM input.

Who It’s For

I’d shortlist this if you’re using an MC cartridge into an MM phono stage and you’d rather not add active gain stages near the turntable. The impedance switch helps if you’re trying more than one cartridge (or you just want the ability to tweak loading after listening).

It also makes sense for simple vinyl systems where you want passive signal boosting plus a bit of tuning, without an external power adapter and extra wiring complexity.

Step-Up Ratio	1:20 (20x) passive
Cartridge Output Range	0.2-0.5 mV
Input Impedance Spec	47 ohms
Bandwidth	38 Hz-30 kHz
Outputs	Gold RCA plus GND terminal

What We Found

The BOYUUSOUND NC-25C is a passive 1:20 step-up transformer aimed at low-output MC cartridges, specifically those in the 0.2-0.5 mV range. It’s designed to boost the MC signal to something an MM phono input can handle.

The listing calls out gold-plated RCA connections and a dedicated ground terminal, which is useful if you’ve run into hum issues. It also specifies a 38 Hz-30 kHz bandwidth, supporting its claim of covering the full audio range. Since it’s passive, it doesn’t require power, keeping the analog chain simpler.

The aluminum housing is meant to be compact, and the package includes the transformer and a manual (with cables not included), which can slow down setup if you’re starting fresh.

Who It’s For

This one fits if your MC cartridge sits in that 0.2-0.5 mV output area and your phono stage is an MM input that needs more gain. I’d also consider it if grounding has been a problem for you, because the ground terminal gives you another way to address hum.

Passive operation appeals to listeners who prefer fewer powered boxes in the signal path, and the fixed 1:20 approach is a straightforward match when your cartridge output aligns well with that ratio.

Input Impedance Range	50 to 100 ohms
THD Claim	0.02% at 1 kHz
Connectivity	2x RCA input, 2x RCA output
Size Weight	4.0 x 1.1 x 4.0 inches; about 2.0 lbs
Warranty	1 Year Limited Warranty

What We Found

The Rolls Bellari MT502 is positioned around audio fidelity and loading control. The listing includes a low THD claim of 0.02% at 1 kHz, which is intended to keep distortion low when you’re amplifying the MC signal.

For connection, it’s set up for stereo with 2x RCA inputs and 2x RCA outputs. The standout detail for dialing in sound is the optimized impedance matching: it lists an input impedance range of 50 to 100 ohms, so you’re not stuck with only one loading value.

It’s also described as compact (4.0 x 1.1 x 4.0 inches) and about 2.0 lbs, which helps if your turntable shelf space is tight. Finally, the listing mentions a 1-year limited warranty, which is a helpful safety net when you’re investing in a phono-stage compatibility piece like this.

Who It’s For

I’d point you here if you’re pairing an MC cartridge with an MM phono stage that needs more gain. The 50 to 100 ohm loading range is ideal if you want the ability to tune tonal balance and how the cartridge responds under load.

It also suits listeners who want a compact transformer footprint and appreciate having a warranty included. If you’re building a focused analog chain and you don’t want to play “guess the load,” the adjustable range is the reason to consider it.

Function	Demonstrates step-up and step-down
Core Size	16 cm tall assembled; 4 x 4 cm cross section
Primary Coil	600 windings
Secondary Coil Options	6 turns to 6000 turns
Demonstrated Ratio Range	0.01x to 10x

What We Found

The Eisco Heavy Duty Demonstration Transformer with 4 coil units reads like a learning and experimentation tool more than a purpose-built MC step-up transformer for turntables. It demonstrates step-up and step-down behavior with a heavy core and a tall assembled profile.

The listing describes a primary coil with 600 windings, plus secondary coils ranging from 6 turns up to 6000 turns. That supports voltage-change demonstrations across a broad range (listed as 0.01x to 10x). It’s well-aligned for studying transformer fundamentals and experimenting with ratio effects.

However, it isn’t presented with vinyl-focused signal design details – no mention of MC-to-MM goals, RCA audio connectivity, grounding/shielding targets, or audio-bandwidth/distortion expectations.

Who It’s For

This makes sense for students, hobbyists, and anyone who wants a straightforward platform for understanding how turns ratio affects voltage behavior.

If the goal is vinyl listening with an MC cartridge, it becomes complicated quickly because the transformer needs the right ratio and impedance behavior at very low signal levels, plus it needs low-noise audio-friendly construction. The value here is in demonstration, not in clean phono signal conversion.

Rated Power	2000 watt
Conversion Direction	110-120V to 220-240V and reverse
Conversion Efficiency Claim	90%
Protection	Overcurrent, overload, overheating, short circuit; resettable circuit breaker
Display	LCD with fault codes

What We Found

The CELYYPU 2000 watt voltage conversion transformer is meant for changing AC mains voltage, not for stepping up an MC cartridge signal. It’s designed to convert 110-120V to 220-240V (and back).

The listing discusses conversion efficiency (claimed around 90%), plus protections and an LCD display showing input voltage and fault codes. It also includes a resettable breaker and multiple socket types.

None of the specs provided relate to moving coil signal conversion – no step-up ratios for phono, no cartridge impedance loading targets, and no audio bandwidth or noise/distortion considerations. Because of that, it can’t serve as a moving coil step-up transformer without turning the setup into a safety-risk misunderstanding.

Who It’s For

I’d treat this as a household/travel power compatibility tool for appliances, not as a vinyl upgrade. It fits when you need to run devices across different voltage standards and when power draw and safety requirements are appropriate.

For MC gain or impedance matching goals, it doesn’t match the job – using it near phono electronics doesn’t help cartridge output, and adds unnecessary mains conversion to the equation.

Rated Power Claim	5000W voltage transformer
Conversion Range	110-120V to 220-240V and reverse
Output Sockets	3 US sockets plus 3 universal sockets
Protection	Circuit breaker protection
Core Note	Voltage conversion only; frequency not converted

What We Found

The Yinleader 5000 Step Up/Down Transformer Converter is also an AC mains voltage converter, not an audio moving coil step-up transformer. It changes 110-120V to 220-240V and back, using a toroidal transformer and circuit breaker protection.

The listing includes safety warnings (including not using it to charge Tesla EVs) and mentions continuous operation capability of 7×24 hours. It offers multiple output sockets, including three US sockets and three universal sockets, plus guidance that it converts voltage but not frequency (Hertz).

None of those features address MC cartridge output impedance, step-up ratio choices for phono, RCA audio integration, or audio quality factors like bandwidth and noise – so it can’t be used as an MC step-up solution for vinyl playback.

Who It’s For

This is for households or travelers who need power compatibility across regions, where appliances can run on converted mains voltage. It’s a practical answer to voltage mismatch, but it isn’t designed for cartridge gain. Vinyl setups require low-noise, impedance-aware signal conversion, and this unit doesn’t speak to those needs.

Capacity	3000VA (rated up to 2400VA with 80% max load)
Voltage Sensing	Automatic detection of 110V or 220V input
Outputs	3 US sockets, 3 EU sockets, USB, Type-C
Protection	Air switch overcurrent protection and resettable circuit breaker
Display	Dual LCD displays

What We Found

The VEVOR Voltage Auto Converter Transformer is a heavy-duty mains voltage converter with automatic voltage detection. It’s built to output both 110V and 220V depending on the detected input, and it includes dual LCD displays plus protection features like an air switch and a resettable circuit breaker.

The listing also claims a 3000VA capacity and mentions toroidal efficiency for reduced noise and heat. Output options include multiple sockets (US and EU) along with USB and Type-C outputs. Even with all that convenience, it’s not aimed at moving coil signal conversion.

There’s no mention of step-up ratios for phono, cartridge impedance loading behavior, audio bandwidth, or the kind of low-noise design you’d expect in an MC-to-MM transformer. Putting this into a turntable signal chain wouldn’t address MC gain mismatch and would introduce unnecessary power conversion.

Who It’s For

I’d consider this if you need power compatibility across regions or mixed appliances, especially when you want multiple socket types and some USB options. For turntables, though, it doesn’t solve the relevant problem.

The right “step-up” for MC vinyl is about raising a tiny audio signal while matching impedance/loading, not converting mains voltage.

Input/Output	115/230V step-up/step-down
Capacity	150VA
Additional Details	None provided
Design Type	Autotransformer (implied by title)

What We Found

The Autotransformers 115/230V 150VA XFMR STEP-UP/STEP-DOWN listing provides almost no details that would let me evaluate it for vinyl use. The only clear info is the voltage range (115/230V) and a power rating (150VA). There’s nothing about construction details, protections, efficiency, or whether it’s designed for audio use.

More importantly, there’s no audio signal capability information, no phono connectivity, and no indication of ratio behavior or impedance matching intended for moving coil cartridge outputs.

A true MC step-up transformer needs predictable ratio performance at low millivolt levels and must be designed to manage noise – this listing doesn’t provide any of that, so it’s best treated as a mains autotransformer rather than an audio step-up option.

Who It’s For

This fits if all you need is basic, low-power mains voltage conversion for non-audio equipment. I wouldn’t choose it for a vinyl system where MC gain and noise control matter, because the listing doesn’t address cartridge impedance or signal noise needs.

If you bought it for phono, you’d be guessing – and that’s a setup risk.

Rated Power	Up to 5000 watts (30 minutes), 2500W continuous
Supported Input/Region	Designed for European/Asian 220V single phase
Protection	Dual circuit breakers for 120V and 220V
Sockets	1 x 110V socket and 1 x Universal 220V socket
Certification	CE Certified

What We Found

The ELC T-5000+ 5000-Watt Voltage Converter Transformer is aimed at power compatibility in regions where 220V single-phase is common, with step-up/down voltage behavior. The listing notes it won’t work with American 220 due to region and phase constraints.

It includes dual circuit breakers (for each voltage side) and states a maximum capacity of 5000 watts for 30 minutes, with a lower recommendation of 2500W for continuous use. The listing also mentions CE certification and includes weight/dimensions for installation planning, plus warnings about high-heat appliances.

None of the provided information relates to moving coil step-up functionality – there’s no info on audio ratios, impedance loading, bandwidth, or low-noise phono design. This is for appliance voltage conversion, not analog signal tuning.

Who It’s For

I’d suggest this when you specifically need high-watt power adaptation for compatible 220V single-phase regions. It’s a better match for powering appliances within its constraints and protection features.

If you’re trying to add MC gain or match impedance for vinyl, it won’t help – phono systems need precise signal handling rather than mains voltage conversion.

Rated Power	2000W
Conversion	110V-120V to 220V
Protection	Temperature control, lightning protection, short circuit protection
Behavior on Overload	Auto power off when overloaded
Portability	Handle design

What We Found

The Step Up Transformer 110v to 220v 2000w Voltage Converter is a mains voltage conversion product, not an MC step-up transformer. It’s designed to convert 110-120V input into 220V output to power 220V devices.

The listing claims 2000W capacity and includes temperature control protection, lightning protection, and short-circuit protection, along with automatic power-off behavior when overloaded. It also mentions a handle for portability and describes construction using high-quality coils and materials.

What’s missing for vinyl is anything audio-focused: no phono step-up ratio, no cartridge impedance matching targets, no bandwidth information, and no guidance on low-noise output at millivolt levels. Since MC cartridges rely on precise gain behavior at very low signals, this addresses power delivery – not analog signal conversion.

Who It’s For

This is for people who need to power 220V appliances from a 110-120V region, as long as the appliance’s power draw stays within the stated limits and you follow the safety guidance. It doesn’t fit vinyl owners who are trying to improve MC cartridge output into a phono stage.

The transformer type and protections are about electrical safety for mains usage, not low-noise analog performance.

What to Look For Before Buying

When I’m helping someone narrow down the best moving coil step-up transformer, I start with compatibility in plain terms: what your cartridge outputs, what your phono stage expects, and whether the transformer can be loaded the way your cartridge actually prefers. After that, I focus on grounding/connection details and the practical “knobs” you get for tuning – because that’s often what separates easy plug-in results from ongoing hum and tonal confusion.

Check Match Cartridge Output and Step-Up Ratio

Start with the cartridge’s output level (many low-output MC models are around 0.2-0.5 mV) and then confirm the transformer’s step-up ratio. If the ratio is off, you’ll either end up with a signal that feels too quiet or a phono input that’s struggling instead of working cleanly. Use the ratio and the MM phono input expectations to sanity-check the match, then rely on loading options when available to fine-tune the sound rather than hoping for a universal fit.

Value Prioritize Real Tuning Features Over Extra Marketing

My experience is that the most useful features are the ones that let you tune loading – like a real adjustable impedance range or a clearly described selection switch. If a transformer doesn’t list key electrical details when they’re available (bandwidth, distortion claims, or impedance behavior), I’d treat it as more of a guess. A warranty can also help here, because you’re buying into an “MC-to-MM compatibility” decision where returns may be annoying.

Rating Use Rating Signals and Listing Specifics Together

I don’t ignore ratings, but I use them as a secondary signal. When ratings aren’t listed, I fall back on the listing specifics: does it mention grounding (like a dedicated GND terminal), does it clearly state MC-to-MM compatibility, and does the RCA connectivity match your setup? If the listing stays vague, it’s usually harder to predict real-world hum behavior and how well the cartridge loading will come across.

Verify Confirm Grounding, Cabling, and System Placement

Hum and buzz are often the first thing people blame on the transformer – when it’s really grounding and cable routing. A dedicated ground terminal can make troubleshooting easier. Keep RCA runs away from mains adapters and power wiring, and use short, well-shielded RCA cables if you can. Before you judge sound changes, also confirm your phono stage input type and make sure every connection is seated properly.

Frequently Asked Questions

What does a moving coil step-up transformer do for vinyl playback?

A moving coil step-up transformer raises the tiny millivolt-level output from an MC cartridge. It converts that low signal into a higher level suitable for an MM phono stage input. It also presents a specific reflected load impedance to the cartridge, and correct matching can help improve detail, balance, and overall clarity.

How important is impedance matching for an MC step-up transformer?

Impedance matching matters because it can change frequency balance and how the cartridge controls bass. Many MC cartridges don’t sound the same under different load resistances. If your transformer offers adjustable impedance, you can tune the load to the cartridge you’re using. If the impedance range is fixed, you’re relying more on correct ratio and the load assumptions built into that design.

Is a voltage conversion transformer the same as an MC step-up transformer?

No. A voltage conversion transformer changes mains power from one voltage standard to another. An MC step-up transformer works on tiny audio signals at very low levels and is designed for cartridge ratio and impedance loading. Using a power converter for MC gain won’t do the same job and can introduce unnecessary problems.

Why does hum appear with step-up transformers?

Hum can come from grounding errors, cable routing, or insufficient shielding in the signal path. A dedicated ground terminal can help you establish a stable reference. Keep transformer and RCA cables away from power cords and wall adapters, and verify the phono stage’s grounding connection. When you clean up grounding systematically, the buzz usually improves.

What step-up ratio usually works with low-output MC cartridges?

Many low-output MC cartridges around 0.2-0.5 mV often align well with step-up ratios in the neighborhood of 1:20, but the exact match depends on your MM phono stage gain and its input impedance. Too low of a ratio can leave things lacking volume, while too high can sound strained. Always confirm the cartridge’s output level and the phono input level you’re targeting before buying.

🎯 Final Verdict

If I’m choosing from what’s shown here, I’d pick the Rolls Bellari MT502 as the best overall moving coil step-up transformer because it offers a 50-100 ohm input impedance range alongside a low THD claim. That combination makes it easier to dial in loading instead of relying on one fixed setup. My runner-up is the BOYUUSOUND NC-25C, which targets 0.2-0.5 mV cartridges with a 1:20 passive ratio and includes a dedicated ground terminal for hum troubleshooting. Go with the MT502 when you value tuning; choose the NC-25C when your cartridge output fits the fixed ratio and grounding support matters most.
