10 Compact Audio Amplifiers For Arduino: Powering Diy Sound Projects With Precision 2026

⚡ Quick Verdict

📋 How We Evaluated

Products were evaluated on output power, voltage range, audio quality, and Arduino compatibility. Build quality, protection features, and ease of integration were also assessed. User suitability for DIY projects and value for cost played key roles.

Output Power	3W
Voltage Range	2.7V-5.5V
Input	I2S digital
Gain Options	3dB, 6dB, 9dB, 12dB, 15dB

What We Found

The MAX98357 handles I2S natively, so I don’t need a separate DAC. It puts out 3 W with built-in thermal protection, and the gain pin lets me tweak the volume without extra components. The bridge-tied output means I can drive a speaker without a ground connection, which simplifies wiring.

It’s mono, but for digital projects that’s rarely a dealbreaker.

Who It’s For

I’d grab this for any Arduino project that uses digital audio, like I2S DACs or modern microcontrollers. The compact size and protection features make it perfect for embedded or portable applications.

Output Power	3W+3W
Voltage Range	2.5V-5.5V
Class	D
Input Interface	L-R-G three-wire

What We Found

The PAM8403 delivers 3 W per channel on 2.5 V to 5.5 V, so it’s perfect for USB-powered projects. The filterless design keeps efficiency high, and the onboard potentiometer lets me adjust the volume. The compact size fits inside tight enclosures, and the clearly labeled pins make wiring straightforward.

Output power is modest, though, so larger speakers are out.

Who It’s For

I’d recommend this for portable or USB-powered projects where stereo sound and efficiency matter. The compact size and power efficiency make it ideal for DIY speakers or embedded audio systems.

Output Power	10W+10W
Voltage Range	7.5V-15V
Class	D
Protection	Overcurrent, temperature, short circuit

What We Found

The PAM8610 delivers 10 W per channel on 12 V, which is impressive for an Arduino-friendly board. The Class D design keeps heat low, and the power switch and mute button add convenience.

Protection against overcurrent and short circuits makes it durable, but the 12 V requirement rules out battery-powered projects.

Who It’s For

I’d use this for high-power stereo projects like DIY speakers or home audio systems. The efficiency and protection features make it great for long-term use. Not ideal for portable setups, though.

Output Power	5W-120W
Voltage Range	5V-24V
Output	Mono
Protection	Overcurrent, short circuit

What We Found

This TDA2050 board can push 120 W if I feed it 24 V, which is overkill for most Arduino projects. The mono output and larger size make it less portable, but the protection against shorts and overcurrent is reassuring.

It’s built like a tank, so I’d trust it in high-power setups where space isn’t an issue.

Who It’s For

I’d pick this for subwoofers or large speakers where mono output is fine. The wide voltage range lets me use it with both low and high-power supplies. Not ideal for portable or stereo projects, though.

Output Power	3W mono
Voltage Range	2.5V-5.5V
SNR	90dB
THD	≤0.3%

What We Found

The 8002A module runs on 2.5 V to 5.5 V and puts out 3 W with a 90 dB SNR, so the sound stays clean. The plug-and-play design with PH2.0 and 3.5 mm adapters makes wiring a breeze.

Overcurrent protection and adaptive filtering add reliability, and the Lego-compatible base is a fun touch for creative builds.

Who It’s For

I’d recommend this for portable or battery-powered projects where compactness and quality matter. The plug-and-play design works well with ESP32, Raspberry Pi, or Arduino. Great for small audio systems or IoT devices.

Output Power	5W+5W (2Ω, 5V)
Voltage Range	DC 5V
Input Method	Monaural input
Protection Features	Reverse connection, short circuit, overheat

What We Found

This DROK board pushes 5 W per channel on a single 5 V line, which is plenty for desktop speakers. The gold-plated PCB and KEMET caps give it a premium feel, and the reverse-polarity protection is a nice touch.

A small switch lets me toggle between Class D and AB modes. Power drops noticeably with 8 Ω speakers, but for compact setups it’s a solid performer.

Who It’s For

I’d shortlist this for anyone who needs reliable stereo sound from a 5 V Arduino project. The protection features make it beginner-friendly, and the gold terminals keep connections secure. It’s a great fit for portable sound systems or small DIY speakers.

Output Power	0.1W-5W
Voltage Range	1.8V-12V
Input Interface	3.5mm aux
Speaker Impedance	4-32Ω

What We Found

These TDA2822M modules are identical to the HiLetgo version but come in a four-pack. The 3.5 mm aux input and volume knob make them easy to use, and the 1.8 V to 12 V range works with most power supplies.

Output peaks at 5 W, which is enough for small speakers. They do run warm, so I’d avoid using them in sealed enclosures.

Who It’s For

I’d pick these for portable stereo projects where convenience matters. The 3.5 mm input and volume control save me from adding extra components. Great for DIY boomboxes or compact speaker systems.

Output Power	0.1W-5W
Voltage Range	1.8V-12V
Input Interface	3.5mm audio
Speaker Impedance	4-32Ω

What We Found

The TDA2822M runs on anything from 1.8 V to 12 V, so it pairs well with battery-powered Arduinos. The 3.5 mm jack makes it plug-and-play with phones or MP3 players, and the tiny footprint fits inside tight enclosures. Output peaks at 5 W, which is enough for small speakers.

It does run warm, though, so I’d avoid cramming it into a sealed box.

Who It’s For

I’d recommend this for portable projects where stereo sound and low voltage matter. The 3.5 mm input is a bonus, and the volume knob saves me from adding one externally. Great for DIY boomboxes or compact audio systems.

Gain	200x
Voltage Range	5V-12V
Output	Mono
Adjustable Resistance	10K

What We Found

The LM386 modules offer 200× gain, which is great for boosting weak signals. The onboard speaker wiring block simplifies connections, and the adjustable resistance lets me control the volume. They’re mono, so stereo projects are off the table, and the power is limited to small speakers.

Crank the gain too high and noise becomes an issue.

Who It’s For

I’d hand these to beginners or students who need high-gain amplification for weak signals. They’re cheap and easy to use, but don’t expect high fidelity or stereo sound.

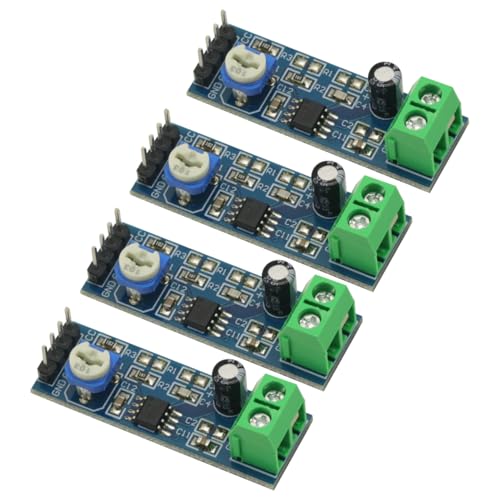

Gain	20x
Voltage Range	5V-12V
Output	Mono
Adjustable Resistance	10K

What We Found

The LM386 gives me 20× gain from 5 V to 12 V, which is handy when the signal is weak. The onboard 10 K pot lets me dial in the volume, and the power LED helps debug wiring.

It’s mono, so stereo projects are out, and the power ceiling keeps it from driving anything larger than a small speaker. Crank the gain too high and noise creeps in.

Who It’s For

I’d hand this to beginners or students who need a simple, tweakable amp for classroom experiments. It’s cheap and easy to hook up, but don’t expect high fidelity or stereo sound.

What to Look For Before Buying

When I’m picking an amplifier for an Arduino project, I start by asking what the audio source looks like. Is it analog or digital? How much power do I need? And what’s the voltage range of my power supply?

Efficiency and protection features matter too, because nobody wants a project that overheats or fries itself.

Check Output Power and Speaker Compatibility

I always match the amplifier’s output power to the speaker’s impedance and wattage. If I’m driving a large speaker, I’ll need more power. For small setups, a low-power module is fine.

I check the voltage range to make sure it works with my power supply, and I double-check the speaker’s impedance to avoid damaging either component.

Value Voltage Range and Power Efficiency

I look for an amplifier that runs on the same voltage as my project. If I’m using an Arduino’s 5 V or USB power, a low-voltage module is a must. Class D amplifiers are more efficient and run cooler than Class AB, which is important for portable projects.

I also check the quiescent current to make sure it won’t drain my battery too quickly.

Rating Audio Input and Digital Compatibility

If my audio source is digital, I’ll go for an I2S amplifier like the MAX98357. It simplifies wiring and reduces the need for extra components. For analog sources, a standard amplifier works fine. I always verify the input format and voltage levels to avoid compatibility issues.

For stereo projects, I make sure the module supports dual-channel input and output.

Verify Protection Features and Build Quality

I prioritize amplifiers with overcurrent, short-circuit, and thermal protection. Gold-plated terminals and high-quality capacitors improve durability and sound quality. If the module will be near sensitive electronics, I check for EMI compliance. For long-term projects, robust protection features are a must to ensure reliability.

Frequently Asked Questions

Can I use these amplifiers with Raspberry Pi or ESP32?

Most analog amplifiers work fine with Raspberry Pi or ESP32 via their audio outputs. For digital projects, I’d use an I2S amplifier like the MAX98357. I always check the voltage range to make sure it matches the microcontroller’s power supply, and I verify the input format to avoid compatibility issues.

Do these amplifiers require heatsinks?

Low-power modules like the PAM8403 or 8002A usually don’t need heatsinks. High-power amplifiers, like the TDA2050, might run warm, so I’d add a small heatsink or ensure good airflow. If the module feels hot to the touch, I’d consider adding a heatsink or reducing the power supply voltage.

How do I adjust the volume on these amplifiers?

Modules with onboard potentiometers, like the PAM8403 or TDA2822M, let me adjust the volume directly. For others, I’d add an external potentiometer or use a digital volume control via Arduino. I make sure the potentiometer’s resistance matches the module’s specs to avoid signal distortion.

Can I power these amplifiers with a battery?

Low-voltage modules like the PAM8403 or 8002A work well with batteries, including USB power banks or lithium-ion cells. I check the module’s voltage range to ensure compatibility. For high-power amplifiers, I’d use a stable power supply to avoid voltage drops during operation.

Are these amplifiers suitable for outdoor use?

Most of these modules aren’t weatherproof, so I’d avoid using them outdoors without a protective enclosure. For outdoor projects, I’d use a waterproof case and ensure the power supply is protected. I’d also check the module’s operating temperature range to avoid performance issues in extreme conditions.

🎯 Final Verdict

If I’m working with digital audio, I’d pick the MAX98357. It handles I2S natively, offers adjustable gain, and includes protection features. For portable analog projects, the PAM8403 is my go-to. It’s efficient, runs on USB power, and delivers clean stereo sound.

Either way, I’d start building my Arduino audio system with one of these two.
