10 Precision Signal Conditioning For Analog Strain Gauge Measurement Systems 2026

⚡ Quick Verdict

📋 How We Evaluated

These products were evaluated based on signal stability, calibration precision, and industrial build quality. Performance metrics focused on output range flexibility and compatibility with common PLC or microcontroller systems.

Output	4-20mA, 0-5V, 0-10V
Input Power	12-24V
Calibration	Multi-turn potentiometers
Compatibility	Load cells, strain gauges

What We Found

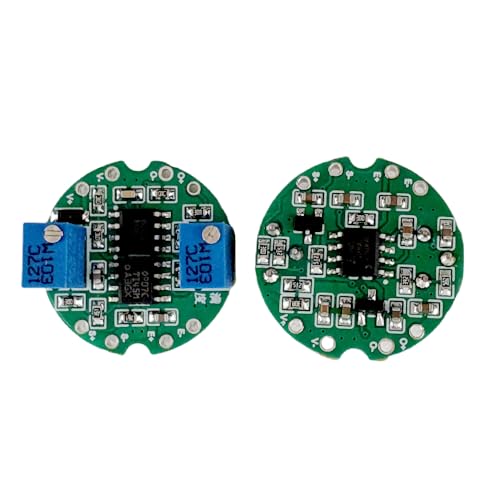

The Universal Sensor Signal Amplifier stands out for its precision and flexibility in industrial measurement. It supports various strain-gauge bridges and provides clean, noise-free excitation. The inclusion of multi-turn potentiometers allows for highly accurate zero and span calibration, which is vital for precise weighing and pressure monitoring.

The unit offers multiple output formats, including 4-20mA and 0-10V, ensuring compatibility with almost any modern industrial controller. It operates on a wide 12-24V power range, making it adaptable to different power infrastructures found in factories or labs.

The clear terminal labeling simplifies the wiring process, reducing the risk of errors during installation. This amplifier is a top-tier choice for those requiring consistent, calibrated performance across diverse measurement systems.

Who It’s For

This amplifier is designed for serious laboratory measurements and industrial automation. It is the best choice for users who need precise control over calibration offsets. It is perfect for those who require a flexible, high-quality signal conditioner that can handle various sensor types and output requirements.

Output Types	4-20mA, 0-5V, 0-10V
Protection	Overload and short circuit
Features	Linear compensation
Compatibility	PLC/Computer

What We Found

The Bolisila transmitter is a comprehensive solution for industrial load cell signal amplification. It converts low-level bridge signals into standard 0-5V, 0-10V, or 4-20mA outputs. The module includes input overload and output short-circuit protection, ensuring safety in complex automation setups.

It features high-precision internal circuitry that handles impedance matching, linear compensation, and humidity compensation to maintain signal integrity. By connecting directly to a PLC or a computer-based terminal, it streamlines the data acquisition process significantly.

This transmitter is designed for accuracy and stability, making it a reliable bridge between raw mechanical sensors and control systems. The build quality reflects its intended use in professional environments where constant, noise-free signals are essential for operation.

Who It’s For

This is intended for automation engineers and industrial system integrators. It is ideal for those who need to interface load cells with PLCs or industrial control computers. It suits professionals requiring high reliability and built-in protective features for mission-critical measurement systems.

Input	4 Gauge
Output	8 Gauge
Material	Machined brass
Finish	Satin chrome

What We Found

The Recoil WR48P is a high-quality wire gauge reducer designed for car audio amplifier installations. It allows users to transition from 4-gauge power or ground cables to 8-gauge inputs without the need for crimping. The set screw design ensures a secure, high-contact connection that maximizes power transfer to the amplifier.

Machined from solid brass with a satin chrome finish, it offers excellent corrosion resistance and electrical conductivity. The included red and black silicone covers provide necessary insulation and a clean, professional aesthetic.

This product solves the common problem of mismatched wire sizes in audio setups, ensuring that power delivery remains efficient and safe across the entire installation.

Who It’s For

This product is for car audio installers and DIY enthusiasts. It is perfect for those upgrading their amplifier wiring who need to manage different cable sizes. It is ideal for users who want a secure, corrosion-resistant connection for high-power sound systems.

Range	0-20A DC
Accuracy	Class 2.5
Mounting	Panel mount
Dimensions	64 x 56 x 56mm

What We Found

The YXQ Analog Current Panel is a specialized ammeter designed for monitoring 0-20A DC circuits. It follows the 85C1-A model standard and features a 2.5 accuracy class, suitable for general circuit measurement tasks.

The panel size is compact, measuring roughly 2.5 inches, which allows for easy mounting on control panels or test equipment. It utilizes a 75mV shunt for measurement, which is a standard approach for high-current monitoring. The construction is primarily plastic and electronic components, offering a lightweight but functional design.

It serves as a visual indicator for current levels in automotive or electronic circuits, providing a quick, analog reference for users who prefer physical gauges over digital displays.

Who It’s For

This meter is for technicians and hobbyists working on automotive electrical systems or power supplies. It is ideal for those who need a simple, reliable visual current gauge. It suits users who prefer analog feedback for monitoring circuit loads in real time.

Fatigue Life	10 million cycles
Size	32 x 17 mm
Output	0-3.5V
Protection	Reverse diode

What We Found

The Hemobllo module is designed for long-term fatigue testing, boasting a life cycle of over 10 million operations. It includes a reverse protection diode to prevent damage during emergency power events.

The module processes raw strain gauge inputs and provides a 0-3.5V analog output, which is ready for processing by controllers or data loggers. Its small physical size of 32 x 17 mm makes it highly portable for confined installation areas.

The module is built to withstand repeated stress, making it more durable than many similar compact sensors. While it requires careful handling during setup, it offers a robust solution for repetitive bending or stress-monitoring tasks where reliability over time is a primary concern.

Who It’s For

This device is perfect for long-term monitoring projects where fatigue life is critical. It is well-suited for industrial engineers conducting lifecycle tests on small components. The compact size also appeals to users building portable measurement devices that need to survive repeated use.

Range	0-20A DC
Accuracy	Class 2.5
Form Factor	Round panel mount
Requirements	20A 75mV shunt

What We Found

The YXQ 65C5-A is a circular analog ammeter designed for 0-20A DC current measurement. It provides a classic round interface with an accuracy class of 2.5, making it suitable for general monitoring in control panels.

This meter requires a 20A 75mV shunt to function, which is not included in the package. The design is robust, with a front panel size of approximately 3.5 inches, offering a clear view of current fluctuations.

It is constructed from durable materials and provides a consistent, simple way to monitor circuit loads. While it is not an amplifier, it serves as a reliable visual tool for technicians performing circuit testing or general electrical monitoring in automotive and industrial settings.

Who It’s For

This ammeter is for technicians and builders who need a round panel gauge for monitoring current. It is best for those who already have a 75mV shunt and need a visual display. It works well for automotive and lab power supply monitoring.

Voltage	DC5V
Bending Angle	0-30 degrees
Output	0-5V analog
Adjustment	Zero potentiometer

What We Found

The Taidacent Strain Gauge module provides a basic solution for bending measurements. It features a simple DC5V board with a blue LED indicator. The design centers on a 0-30 degree bending range, where output voltage scales directly with the degree of deflection.

It includes an onboard potentiometer for zero-point calibration, allowing users to adjust the baseline signal. The module outputs an analog 0-5V signal, making it accessible for hobbyist projects or simple test rigs.

While the build is modest, it offers a straightforward path for those needing to translate physical bending into an analog voltage value. The inclusion of a test kit and extension cable adds convenience for quick setups in educational or laboratory environments.

Who It’s For

This unit suits students, educators, and hobbyists experimenting with flex sensors. It works best for low-stakes prototyping where simple bending detection is required.

The lack of industrial shielding makes it unsuitable for harsh environments, but it serves as an excellent entry point for learning how strain gauge bridges function within an analog signal chain.

Output Voltage	0-3.5V
Detection	Bending degree
Calibration	Potentiometer
Carrier Compatibility	Flexible

What We Found

This bending detection module focuses on converting physical stress into an adjustable analog voltage output. Users can attach the strain gauge to various carriers like iron or aluminum sheets to detect deformation. The module features an onboard potentiometer, allowing for an adjustable output starting voltage between 0 and 3.5V.

This flexibility helps in mapping the sensor’s range to the specific requirements of a data acquisition system. The compact board design keeps the footprint small, which is beneficial when space is limited.

While it lacks the advanced features of high-end transmitters, it performs the core task of signal conditioning reliably for general-purpose bending tests and basic mechanical stress monitoring.

Who It’s For

This module is ideal for researchers and developers conducting proof-of-concept tests on materials. It works well for those who need to detect and measure deformation on various substrates without complex setups. It serves users who prioritize adjustable baseline voltages for their specific signal processing needs.

What to Look For Before Buying

Choosing an amplifier depends on your accuracy needs and your controller. Consider the excitation voltage and the environment. Always check that the module matches your sensor type before buying.

Check Output Signal Compatibility

Make sure your amplifier output matches your controller. PLCs often use 4-20mA or 0-10V signals. Check your input terminal range to avoid errors.

Value Calibration Flexibility

For precision, look for modules with multi-turn potentiometers. These allow fine-tuning of the zero and span. Stable calibration is key for long-term use.

Rating Signal Filtering and Protection

Industrial noise can ruin signals. Choose amplifiers with built-in filtering. Also, prioritize units with input overload and short-circuit protection to prevent damage.

Verify Physical Build and Mounting

Think about where you will mount the device. DIN-rail modules are great for cabinets. Board-level units work for internal integration. Protect against dust if needed.

Frequently Asked Questions

Can I use these amplifiers with any strain gauge?

Most amplifiers work with standard bridge-based sensors. Always check the resistance and wiring requirements of your specific gauge. Ensure the excitation voltage of the amplifier matches your sensor specs.

What is the difference between 4-20mA and voltage outputs?

Current signals like 4-20mA are more resistant to electromagnetic interference over long distances. Voltage outputs are simpler to use for short-range laboratory setups. Choose based on your wiring distance and controller input.

How do I calibrate the zero-point?

Use the onboard potentiometer. Adjust it while the sensor has no load until the output reads zero.

Are these modules waterproof?

Most are not waterproof. If you are in a harsh area, put the electronics inside a sealed, IP-rated box.

What is a shunt in current measurement?

A shunt is a low-resistance resistor. It creates a small voltage drop that the meter reads as current.

🎯 Final Verdict

For professional and reliable strain gauge amplification, the Universal Sensor Signal Amplifier is the clear choice. It offers the best combination of calibration precision, output versatility, and industrial-grade protection. It seamlessly integrates into complex PLC systems while maintaining excellent signal stability.

For those needing a slightly more budget-friendly or specialized alternative for PLC integration, the Bolisila transmitter is a strong runner-up. Both units provide the professional performance necessary for accurate data acquisition.

Select the Universal Sensor Signal Amplifier today to ensure the highest measurement accuracy for your critical industrial and laboratory applications.
